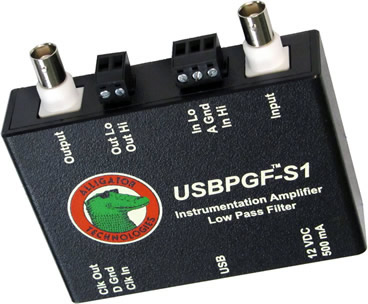

USBPGF-S1 Programmable Gain Instrumentation Amplifier with Variable Frequency Low Pass Filter

Software-Controlled 8-Pole Low Pass Filter with Variable Gain Amplifier

The USBPGF-S1 is a fully programmable single-channel instrumentation amplifier combined with an 8-pole low pass filter. All parameters — gain, cutoff frequency, and coupling — are controlled via USB.

Key Features

• Differential or single-ended input with ±40V protection
• Software programmable gain from 1 to 10,000
• Programmable corner frequency from 0.1 Hz to 200 kHz (model dependent)
• Available filter responses: Butterworth, Bessel, Linear Phase, Cauer/Elliptic
• Software selectable DC or AC coupling
• Non-volatile memory retains settings after power cycle for "Turn Key" operation
• Compatible with any 12, 16, or 24-bit A/D converter
• Includes Windows control software and SDK with API examples

Available Factory Configured Filter Characteristics

• 8-Pole Butterworth — up to 100 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Bessel — up to 66 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Cauer/Elliptic — up to 50 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Cauer/Elliptic — up to 100 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Linear Phase — up to 100 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 8-Pole Linear Phase — up to 200 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots

Ideal for vibration analysis, precision sensor conditioning, and any application requiring clean anti-aliased signals with programmable gain.

Multi-channel Convenience

For multi-channel convenience populate the USBDR-8 USB and power distribution rack with USBPGF-S1 modules. The USBDR-8 can hold up to 8 modules and can be daisy chained to create very large channel counts with one host computer.

Connection to the Data Acquisition System

All I/O connections from the USBPGF-S1 are made via two BNC connectors or from the supplied removable screw terminal connectors.

How to Order

The USBPGF-S1 comes complete with everything you need to connect, power, program and quickly integrate into your data collection system. Please fill out the Request Quote form and we will email our price list and complete information.
