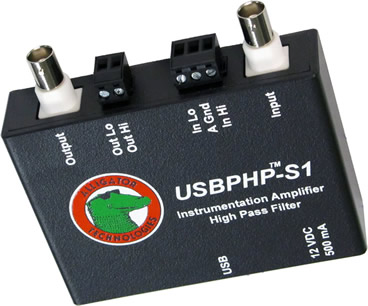

USBPHP-S1 Programmable Gain Instrumentation Amplifier with Variable Frequency High Pass Filter

Software-Controlled 4-Pole High Pass Filter with Variable Gain Amplifier

The USBPHP-S1 is a fully programmable single-channel instrumentation amplifier combined with a 4-pole high pass filter. All parameters — gain and cutoff frequency — are controlled via USB.

Key Features

• Differential or single-ended input with ±40V protection
• Software-programmable instrumentation amplifier gains of 1 to 10000
• Programmable corner frequency from 10 Hz to 41.5 kHz (model dependent)
• 4-pole high pass filter with choices of Butterworth or Bessel
• High pass filter for low frequency or DC bias removal. Useful for demodulation and AC signal conditioning.
• Non-volatile memory retains settings after power cycle for "Turn Key" operation
• Compatible with any 12, 16, or 24-bit A/D converter
• Includes Windows control software and SDK with API examples

Available Factory Configured Filter Characteristics

High Pass Filter Options (4-Pole)

• 4-Pole Butterworth Normal (low range) — up to 1.275 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 4-Pole Butterworth Extended (high range) — up to 41.5 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 4-Pole Bessel Normal (low range) — up to 1.275 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots
• 4-Pole Bessel Extended (high range) — up to 41.5 kHz
  View Group Delay, Frequency Response, and Impulse Response Plots

Ideal for removing DC bias and demodulation applications, and any other situation requiring clean high-pass filtered signals with programmable gain.

Multi-channel Convenience

For multi-channel convenience populate the USBDR-8 USB and power distribution rack with USBPHP-S1 modules. The USBDR-8 can hold up to 8 modules and can be daisy chained to create very large channel counts with one host computer.

Connection to the Data Acquisition System

All I/O connections from the USBPHP-S1 are made via two BNC connectors or from the supplied removable screw terminal connectors.

How to Order

The USBPHP-S1 comes complete with everything you need to connect, power, program and quickly integrate into your data collection system. Please fill out the Request Quote form and we will email our price list and complete information.
