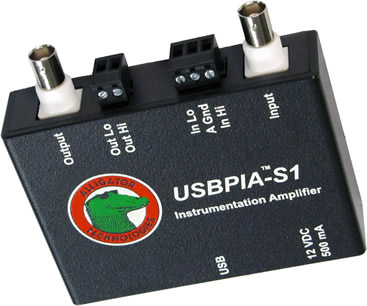

USBPIA-S1 Programmable Gain Instrumentation Amplifier

Software-Controlled Variable Gain Instrumentation Amplifier

The USBPIA-S1 is a fully programmable single-channel instrumentation amplifier. All parameters — gain and coupling — are controlled via USB.

Key Features

• Differential or single-ended input with ±40V protection
• Software-programmable instrumentation amplifier gains of 1 to 10000
• Up to 10MHz amplifier band width output is gain level dependent. See data sheet for more details.
• Ideal for automatic gain compensation applications
• Software selectable DC or AC coupling
• Non-volatile memory retains settings after power cycle for "Turn Key" operation
• Compatible with any 12, 16, or 24-bit A/D converter
• Includes Windows control software and SDK with API examples

Multi-channel Convenience

For multi-channel convenience populate the USBDR-8 USB and power distribution rack with USBPIA-S1 modules. The USBDR-8 can hold up to 8 modules and can be daisy chained to create very large channel counts with one host computer.

Connection to the Data Acquisition System

All I/O connections from the USBPIA-S1 are made via two BNC connectors or from the supplied removable screw terminal connectors.

How to Order

The USBPIA-S1 comes complete with everything you need to connect, power, program and quickly integrate into your data collection system. Please fill out the Request Quote form and we will email our price list and complete information.
